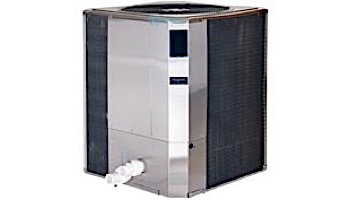

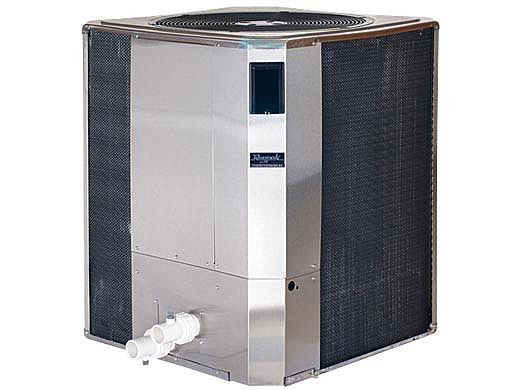

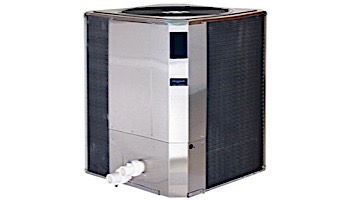

Home Raypak Professional Series Heat Pump 140K BTU Titanium Heat Exchanger | 208V/230V 60Hz | PS9350ti-E-HC | 014777 | TWPH-9350EHC17
Raypak Professional Series Heat Pump 140K BTU Titanium Heat Exchanger | 208V/230V 60Hz | PS9350ti-E-HC | 014777 | TWPH-9350EHC17
Add to cart to see price.
No One Puts More Into Their Pool Heaters
Introducing the Raypak Professional series heat pump pool heaters, designed specifically for commercial properties such as apartments, condos, hotels, motels, schools, parks, community and high-end private pools. It’s also the perfect heater for tough coastal weather conditions where salt air challenges durability. When your reputation is on the line every day, you’ve got to work smart and come prepared with strength, experience, and the guts to lead the way. In a word, it demands a Raypak Professional series pool heater.
Professional Grade Performance
No other single compressor heat pump on the market today compares to the Raypak Professional series. With its industry leading 170kBTU output and 304 stainless steel cabinet, this is truly a commercial grade heat pump pool heater. Backed by a 2 year parts and labor commercial warranty, this is the heat pump you have been looking for.
Features
Microprocessor
control is more precise than mechanical systems. It controls temperatures to within a half degree of the desired set point. Service technicians can easily view the service status of the unit.
Stainless Steel
It’s specifically designed to take a beating in rough coastal climates where salt air can shorten the life of most outdoor appliances, with sleek, appliance grade 304 brushed stainless steel that is so attractive, you won’t want to hide it behind your equipment wall.
Scroll Compressors
by Copeland are reliable and operate at lower sound and vibration levels than reciprocating compressors. Durability is based on a robust design that contains only a few moving parts and it performs better with time: it "wears in," not out.
Swept Wing Fan
Specially designed "Swept Wing" fan blades operate more efficiently and generate minimal sound. Raypak heat pumps are packed full of premium quality components.
Rapid Defrost
Areas that are subject to lower ambient temperatures have a tendency to cause ice to build up on a heat pump's condensing coil. The Professional heat pump uses a patented refrigerant management system to rapidly defrost the heater.
Spiral Titanium Tube
heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.
Flow Switch
is standard equipment on the Raypak Professional. Having a flow switch eliminates pressure switch issues from elevated pools, above or below grade. Also, a flow switch is the only sure way to guarantee that the appliance has proper flow.
Energy Efficient
A heat pump operates at 5 to 6 times the efficiency of a standard gas, oil or electric pool heater. If you live in an area where your natural or propane gas costs have outpaced your electricity costs, the savings can be big.
Introducing the Raypak Professional series heat pump pool heaters, designed specifically for commercial properties such as apartments, condos, hotels, motels, schools, parks, community and high-end private pools. It’s also the perfect heater for tough coastal weather conditions where salt air challenges durability. When your reputation is on the line every day, you’ve got to work smart and come prepared with strength, experience, and the guts to lead the way. In a word, it demands a Raypak Professional series pool heater.
Professional Grade Performance
No other single compressor heat pump on the market today compares to the Raypak Professional series. With its industry leading 170kBTU output and 304 stainless steel cabinet, this is truly a commercial grade heat pump pool heater. Backed by a 2 year parts and labor commercial warranty, this is the heat pump you have been looking for.
Features
Microprocessor
control is more precise than mechanical systems. It controls temperatures to within a half degree of the desired set point. Service technicians can easily view the service status of the unit.
Stainless Steel
It’s specifically designed to take a beating in rough coastal climates where salt air can shorten the life of most outdoor appliances, with sleek, appliance grade 304 brushed stainless steel that is so attractive, you won’t want to hide it behind your equipment wall.
Scroll Compressors
by Copeland are reliable and operate at lower sound and vibration levels than reciprocating compressors. Durability is based on a robust design that contains only a few moving parts and it performs better with time: it "wears in," not out.
Swept Wing Fan
Specially designed "Swept Wing" fan blades operate more efficiently and generate minimal sound. Raypak heat pumps are packed full of premium quality components.
Rapid Defrost
Areas that are subject to lower ambient temperatures have a tendency to cause ice to build up on a heat pump's condensing coil. The Professional heat pump uses a patented refrigerant management system to rapidly defrost the heater.
Spiral Titanium Tube
heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.
Flow Switch
is standard equipment on the Raypak Professional. Having a flow switch eliminates pressure switch issues from elevated pools, above or below grade. Also, a flow switch is the only sure way to guarantee that the appliance has proper flow.
Energy Efficient
A heat pump operates at 5 to 6 times the efficiency of a standard gas, oil or electric pool heater. If you live in an area where your natural or propane gas costs have outpaced your electricity costs, the savings can be big.
Features and details
Professional grade performance
Designed specifically for commercial properties
Perfect heater for tough coastal weather conditions
Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).
MODELS
WARRANTY PERIOD
AVIA Standard Models with copper
heat exchanger: 264*, 404*
Two (2) years following the Effective Date for parts and
labor.
AVIA HD Models with NiTek heat
exchanger: 264*, 404*
Two (2) years following the Effective Date for parts and
labor. Notwithstanding the foregoing, the NiTek heat
exchanger is warranted for three (3) years following the
Effective Date for parts and labor.
Pool and Spa Heater Models: 106A,
156A*, 206A*, 266A*, 336A*, 406A*,
207A*, 267A*, 337A*, 407A*
Two (2) years following the Effective Date for parts and
labor.
ASME Pool and Spa Heater Models:
206A, 266A, 336A, 406A, 207A, 267A,
337A, 407A
One (1) year following the Effective Date for parts and
labor.
Professional Pool and Spa Heater
Models: Professional digital heaters
268A, 408A, SR-410
Three (3) years following the Effective Date for parts
and labor.
Heat Pump Pool Heater Models: 2450,
3450, 4450, 5450, 6450, 8450, TWPH
4550, 5550, 6550, 6550EHC, 8550, &
8550EHC and Professional Series PS-
9350ti, PS9353ti, PS10353ti, PS10354ti,
PS10355ti
Two (2) years following the Effective Date for labor and
seven (7) years following the Effective Date for parts.
Notwithstanding the foregoing, the titanium tube component
of the titanium heat exchanger is warranted for ten
(10) years following the Effective Date for parts and two
(2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater
Models: 30-I*, 40-I*, 50-I*, 65-I*
Two (2) years following the Effective Date for labor and
seven (7) years following the Effective Date for parts.
Notwithstanding the foregoing, the titanium tube component
of the titanium heat exchanger is warranted for ten
(10) years following the Effective Date for parts and two
(2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater
Models: 0005*, 0011*, 0018*, 0027*
E3T 3-Phase Commercial Pool Heater
Models: 0018, 0024, 0030, 0045 and
0054
One (1) year following the Effective Date labor and
parts. Notwithstanding the foregoing, the electrical heating
element of the Heater is warranted for only ninety
days (90) following the Effective Date.
* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.
See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.
This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.
